Series 16 Brush DC Permanent Magnet Motor - 32W, 6-42V
Standard Features:
• Low Cogging Armature
• Ball Bearings
• High Starting Torque
• Precision Die Cast End Bells
• Class B Temperature Rated
• Reversible
• Stainless Steel Output Shafts |
Optional Features:
• Optical Encoders
• Voltages and Performance
• 2" Gearbox
• Noise Suppressors
• Custom Shafting
• Custom Leads and Terminations
• Custom Mounting
• Rear Shaft Extensions
|
|
English Specifications Switch to Metric

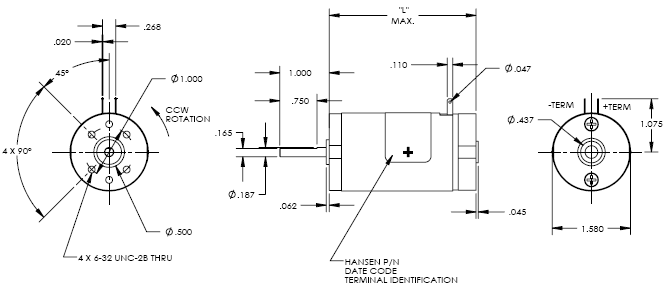

| Part Number | Rated Voltage | No Load | Rated Load | Stall | Voltage Constant | Torque Constant | Terminal Resistance | "L" Dimension |
| Speed | Current | Torque | Speed | Current | Power | Efficiency | Torque | Current |
| Volts | RPM | Amps | Oz-In | RPM | Amps | Watts | % | Oz-In | Amps | V/kRPM | Oz-In/Amp | Ohms | Inch |
| 116-1271216 | 12 | 2750 | 0.1 | 7 | 1700 | 1.3 | 9 | 55% | 18 | 3.2 | 5.2 | 7.0 | 4.64 | 2.69 |
| 116-1321216 | 12 | 2400 | 0.1 | 10 | 1700 | 1.7 | 13 | 62% | 34 | 5.3 | 4.8 | 6.5 | 2.22 | 3.16 |
| 116-1271232 | 12 | 4100 | 0.2 | 6 | 3300 | 1.7 | 15 | 71% | 30 | 7.6 | 2.8 | 3.8 | 1.26 | 2.69 |
| 116-1321232 | 12 | 4000 | 0.2 | 9 | 3300 | 2.6 | 22 | 71% | 49 | 12.8 | 2.9 | 3.9 | 0.84 | 3.16 |
| 116-1271248 | 12 | 5800 | 0.3 | 6 | 4850 | 2.5 | 22 | 71% | 39 | 14.4 | 2.0 | 2.7 | 0.70 | 2.69 |
| 116-1321248 | 12 | 5450 | 0.4 | 9 | 4750 | 3.6 | 32 | 74% | 70 | 25.2 | 2.1 | 2.9 | 0.38 | 3.16 |
| 116-1272416 | 24 | 2750 | 0.1 | 7 | 1700 | 0.7 | 9 | 53% | 18 | 1.6 | 8.5 | 11.5 | 14.97 | 2.69 |
| 116-1322416 | 24 | 2450 | 0.1 | 10 | 1700 | 0.8 | 13 | 62% | 33 | 2.5 | 9.6 | 13.0 | 8.90 | 3.16 |
| 116-1272432 | 24 | 4150 | 0.1 | 6 | 3300 | 1.0 | 15 | 64% | 30 | 4.1 | 5.7 | 7.7 | 5.61 | 2.69 |
| 116-1322432 | 24 | 4100 | 0.1 | 9 | 3350 | 1.3 | 22 | 71% | 50 | 6.4 | 5.8 | 7.8 | 3.32 | 3.16 |
| 116-1272448 | 24 | 5750 | 0.2 | 6 | 4900 | 1.2 | 22 | 73% | 41 | 7.5 | 4.0 | 5.5 | 2.83 | 2.69 |
| 116-1322448 | 24 | 5500 | 0.2 | 9 | 4800 | 1.7 | 32 | 77% | 78 | 14.6 | 4.3 | 5.9 | 1.57 | 3.16 |
|
