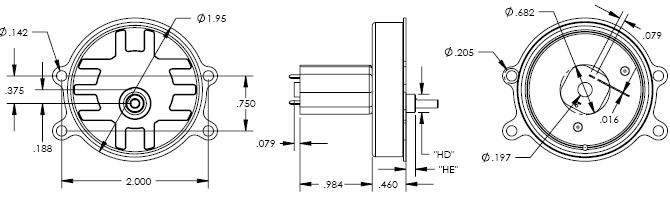

Size 15 Geared Brush DC Electric Motor (Round 4 Hole) - 0.2W, 5-16V
Standard Features:
• Reinforced Plastic and Metal Gearing
• Hardened Steel Output Shaft
• Life Rated at 1000 Hours Continuous duty with 25 oz-in (177 mN-m) load torque at 75°F ambient
• Maximum output torque is 50 oz-in (353 mN-m) in accordance with motor environmental parameters
• Low audible noise for quiet environments
|
Optional Features:
• Custom Shafting
• Custom Leads and Terminations
• Custom Gear Ratios
|
|
English Specifications Switch to Metric
| Geartrain | Speed & Amps @ 12 VDC | Continuous Torque | Intermittant Torque |
| ratio:1 | rev/min | Amps | in-oz | in-oz |
| 60 | 34 | 0.04 | 7 | 14 |
| 100 | 21 | 0.04 | 12 | 23 |
| 150 | 14 | 0.04 | 18 | 35 |
| 300 | 7.8 | 0.03 | 25 | 50 |
| 600 | 4.0 | 0.03 | 25 | 50 |
|
