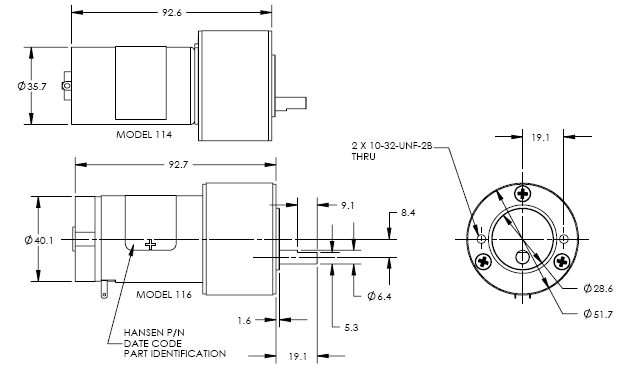

Size 14/16 Geared Brush DC Electric Motor - 25W, 6-42V
Standard Features:
• Sintered Nickel Steel Gearing
• Sintered Bronze Output Bearings
• Life Rated at 1000 Hours Continuous duty with 250 oz-in (1767 mN-m) load torque at 75°F ambient
• Maximum output torque is 500 oz-in (3531 mN-m) in accordance with motor environmental parameters
• Ball Bearing Motor (16) or Sintered Bronze Motor (14)
|
Optional Features:
• Optical Encoders (16 only)
• Voltages and Performance
• Noise Suppressors
• Custom Shafting
• Custom Leads and Terminations
• Custom Mounting
• Rear Shaft Extensions
• Custom Gear Ratios
|
 |
Metric Specifications Switch to English
| Part Number | Ratio | Rated Voltage | No Load | Rated Load | Stall |
| Speed | Current | Torque | Speed | Current | Efficiency | Torque | Current |
| Volts | RPM | Amps | mNm | RPM | Amps | % | mNm | Amps |
| 116-41248-12 | 12 | 12 | 482 | 0.4 | 410 | 406 | 2.6 | 56% | 2613 | 1401 |
| 116-41232-12 | 12 | 12 | 342 | 0.3 | 410 | 274 | 1.8 | 54% | 2062 | 7.6 |
| 116-41216-12 | 12 | 12 | 227 | 0.2 | 480 | 140 | 1.4 | 42% | 1264 | 3.2 |
| 114-41226-12 | 12 | 12 | 250 | 0.1 | 410 | 134 | 1.3 | 36% | 890 | 2.6 |
| 116-41248-48 | 48 | 12 | 121 | 0.4 | 1475 | 102 | 2.6 | 50% | 9407 | 14.1 |
| 116-41232-48 | 48 | 12 | 86 | 0.3 | 1475 | 69 | 1.8 | 48% | 7424 | 7.6 |
| 116-41216-48 | 48 | 12 | 57 | 0.2 | 1729 | 35 | 1.4 | 37% | 4551 | 3.2 |
| 114-41226-48 | 48 | 12 | 63 | 0.1 | 1475 | 34 | 1.3 | 32% | 3203 | 2.6 |
| 116-41248-192 | 192 | 12 | 30 | 0.4 | 3531 | 27 | 1.9 | 44% | 33864 | 14.1 |
| 116-41232-192 | 192 | 12 | 21 | 0.3 | 3531 | 19 | 1.3 | 43% | 26725 | 7.6 |
| 116-41216-192 | 192 | 12 | 14 | 0.2 | 3531 | 11 | 0.9 | 37% | 16383 | 3.2 |
| 114-41226-192 | 192 | 12 | 16 | 0.1 | 3531 | 11 | 0.9 | 35% | 11532 | 2.6 |
| 116-42448-12 | 12 | 24 | 478 | 0.2 | 410 | 407 | 1.3 | 56% | 2782 | 7.5 |
| 114-42452-12 | 12 | 24 | 500 | 0.1 | 410 | 384 | 1.4 | 50% | 1773 | 5.3 |
| 116-42432-12 | 12 | 24 | 345 | 0.2 | 410 | 276 | 1.0 | 51% | 2062 | 4.1 |
| 116-42416-12 | 12 | 24 | 227 | 0.1 | 480 | 140 | 0.7 | 42% | 1264 | 1.6 |
| 116-42448-48 | 48 | 24 | 120 | 0.2 | 1475 | 102 | 1.3 | 50% | 10017 | 7.5 |
| 114-42452-48 | 49 | 24 | 128 | 0.2 | 1476 | 98 | 1.4 | 46% | 6381 | 5.3 |
| 116-42432-48 | 48 | 24 | 86 | 0.2 | 1475 | 69 | 1.0 | 46% | 7424 | 4.1 |
| 116-42416-48 | 48 | 24 | 57 | 0.1 | 1729 | 35 | 0.7 | 37% | 4551 | 1.6 |
| 116-42448-192 | 192 | 24 | 30 | 0.2 | 3531 | 27 | 1.0 | 44% | 36061 | 7.5 |
| 114-42452-192 | 193 | 24 | 32 | 0.2 | 3531 | 27 | 1.0 | 43% | 22973 | 5.3 |
| 116-42432-192 | 192 | 24 | 22 | 0.2 | 3531 | 19 | 0.7 | 41% | 26725 | 4.1 |
| 116-42416-192 | 192 | 24 | 14 | 0.1 | 3531 | 11 | 0.5 | 37% | 16383 | 1.6 |
|
