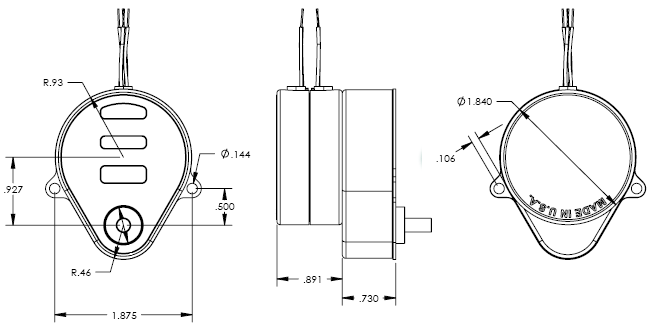

Size 19 Geared Step Motor (Deep Pear)

These gearmotors feature a Hansen size 19 stepper motor with a deep pear-shaped gearbox. Gear ratios range from 1 /2:1 to 1,800:1. Maximum torque output is 100 in-oz (706 mN-m) continuous or 200 in-oz (1412 mN-m) intermittantly. Below are only a few of the many gear ratios available.

Optional Features:

• Voltages up to 240 V
• Custom leads and terminations
• Custom stepper motor outputs

English Specifications Switch to Metric

English			Deep Gearbox
Geartrain	Speed (RPM) @ 120 PPS		Continuous Torque	Intermittant Torque
ratio:1	7.5°/step	15°/step	in-oz	in-oz
30	5	10	40	40
60	2.5	5	80	80
100	1.5	3	100	133
150	1	2	100	200
