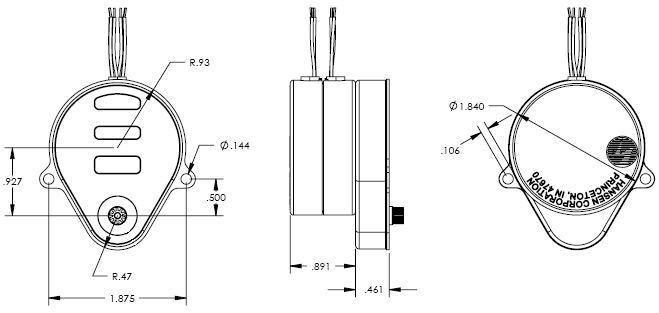

Size 19 Geared Step Motor (Shallow Pear)

These gearmotors feature a Hansen size 19 stepper motor with a shallow pear-shaped gearbox. Gear ratios range from 5:3 to 72,000:1. Maximum torque output is 24 in-oz (169 mN-m) continuous or 48 in-oz (339 mN-m) intermittantly. Below are only a few examples of the many gear rations available.

Optional Features:

• Voltages up to 240 V
• Custom leads and terminations
• Custom stepper motor outputs

English Specifications Switch to Metric

English			Shallow Gearbox
Geartrain	Speed (RPM) @ 120 PPS		Continuous Torque	Intermittant Torque
ratio:1	7.5°/step	15°/step	in-oz	in-oz
30	5	10	24	40
60	2.5	5	22	44
100	1.5	3	22	44
150	1	2	24	48
