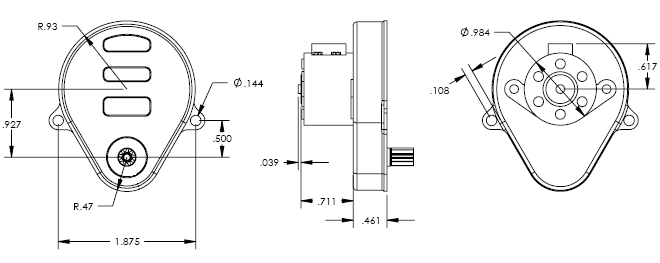

Size 25 Geared Step Motor (Shallow Pear)

These gearmotors feature an NMB size 25 stepper motor with a shallow pear-shaped gearbox. Gear ratios range from 5:3 to 72,000:1. Maximum torque output is 50 in-oz (353 mN-m) continuous or 100 in-oz (706 mN-m) intermittantly. Below are only a few of the many gear ratios available.

Optional Features:

• Voltages up to 24 V
• Custom leads and terminations
• Custom stepper motor outputs

English Specifications Switch to Metric

Geartrain	Speed (RPM) @ 800 PPS		Continuous Torque	Intermittant Torque
ratio:1	7.5°/step	15°/step	in-oz	in-oz
50	20	40	7	14
100	10	20	14	28
150	6.7	13.3	21	42
200	5	10	25	50
600	1.7	3.3	25	50
600HD	1.7	3.3	50	100
1,200	0.8	1.7	25	50
1,200HD	0.8	1.7	50	100
