AC Motor - Geared Hysteresis Pear Deep

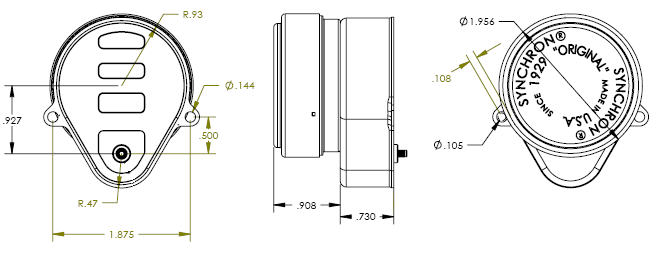

Type "K" Mount
For extra slow speeds
This Synchron motor is ideal for control applications which require extremely slow timing. You can get this pear-shaped, 2-hole-mount synchronous AC motor in speeds from 1/2rph down to 1 revolution per week. Available with operational 1-way clutch for resetting or with 2-way clutch for gear train protection, in all speeds using this mount. Below are only a few examples of hte many gear ratios available. |
When Ordering
Please specify torque, type of output drive (including shaft length, diameter and standard or extended bearing), direction of rotation, type of mount, output speed, voltage and frequency. |
 |
English Specifications Switch to Metric
| | 4 Watts | 5 Watts | 6 Watts |
| Geartrain | Speed @ 60 Hz | Synchronous Torque | Run Torque (rated voltage) | Run Torque (90% voltage) | Run Torque (rated voltage) | Run Torque (90% voltage) |
| ratio:1 | rev/hr | rev/day | rev/week | in-oz | in-oz | in-oz | in-oz | in-oz |
| 432,000 | | 2 | | 25 | | | | |
| 864,000 | | 1 | | 25 | | | | |
| 6,048,000 | | | 1 | 25 | | | | |
|
