AC Motor - Geared Hysteresis Pear Shallow

Type "C" Mount

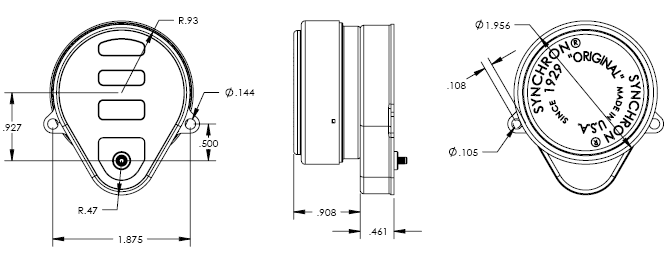

You can get this pear-shaped, 2-hole-mount synchronous AC motor in speeds from 360 rpm to 0.5 rph. Available with operational 1-way clutch for resetting or with 2-way clutch for gear train protection, in 6 rpm and slower speeds. Below are only a few examples of hte many gear ratios available.

When Ordering

Please specify torque, type of output drive (including shaft length, diameter and standard or extended bearing), direction of rotation, type of mount, output speed, voltage and frequency.

English Specifications Switch to Metric

				4 Watts	5 Watts		6 Watts
Geartrain	Speed @ 60 Hz			Synchronous Torque	Run Torque (rated voltage)	Run Torque (90% voltage)	Run Torque (rated voltage)	Run Torque (90% voltage)
ratio:1	rev/min	rev/hr	rev/day	in-oz	in-oz	in-oz	in-oz	in-oz
60	10			2.2	5.4	4.4	7.0	5.7
100	6			3.7	9.0	7.3	11.7	9.5
150	4			5.5	13.5	10.9	17.6	14.2
300	2			10	24	19.4	25	25
600	1			20	25	25
600HD	1			16	39	32	50	41
1,200		30		25	25	25
1,200HD		30		32	50	50
3,600		10		25
36,000		1		25
