Non-Reversing PMAC 129 Series Motors

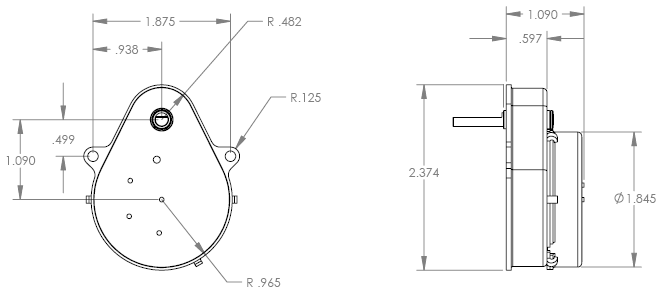

These gearmotors feature a Hansen single direction permanent magnet AC motor with a large pear-shaped gearbox. Gear ratios range from 10:1 to 896:1. Maximum torque output is 40 in-oz (282 mN-m) continuous or 100 in-oz (706 mN-m) intermittantly.

Optional Features:

• Voltages up to 240 V
• Custom leads and terminations
• Custom Front & Rear Shaft Extensions

English Specifications Switch to Metric

Geartrain	Speed @ 60 Hz		Continuous Torque	Intermittant Torque
ratio:1	rev/min	rev/hr	in-oz	in-oz
10	60		4	8
165.7	3.62		12	24
200	3		30	60
248.6	2.41		18	36
300	2		22	44
497.1	1.21		33	66
600	1		40	80
896		40.2	30	60
