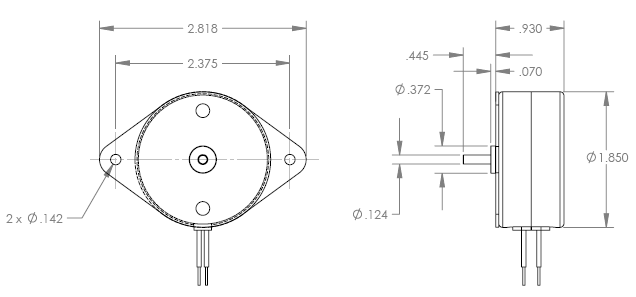

PMAC Step Motor Size 19
Stepper (Step) Motor Standard Features:
• Rigid construction
• Sleeve bearing
• Lead positioning
• 105° C insulation
• Reversible
• Impedance protected
• Increased efficiency
• Instant start/stop
|
Optional Features:
• Voltages up to 240v
• Ball bearings
• Custom leads and terminations
• Custom shafting
• Custom mounting
• Rear shaft extensions
|
 |
English Specifications Switch to Metric
| Part Number | Rated Voltage | Input Power | 60 hz Speed | Start Torque | Stall Torque | Capacitor 60 Hz | Capacitor 50 Hz | Motor O.D. |
| Volts | Watts | RPM | Oz-In | Oz-In | μFd | μFd | Inch |
| SC-236 | 24 | 2 | 300 | 3.6 | 4.0 | 5.0 | 6.0 | 1.85 |
| SC-242 | 24 | 3.5 | 300 | 3.7 | 4.1 | 8.0 | 10.0 | 1.85 |
| SC-248 | 24 | 5 | 300 | 3.8 | 4.2 | 12.0 | 15.0 | 1.85 |
| SC-239 | 24 | 2 | 600 | 1.3 | 3.3 | 5.0 | 6.0 | 1.85 |
| SC-245 | 24 | 3.5 | 600 | 2.3 | 3.4 | 8.0 | 10.0 | 1.85 |
| SC-251 | 24 | 5 | 600 | 3.3 | 3.6 | 12.0 | 15.0 | 1.85 |
| SC-237 | 120 | 2 | 300 | 3.6 | 4.0 | 0.22 | 0.33 | 1.85 |
| SC-243 | 120 | 3.5 | 300 | 3.7 | 4.1 | 0.33 | 0.47 | 1.85 |
| SC-249 | 120 | 5 | 300 | 3.8 | 4.2 | 0.47 | 0.68 | 1.85 |
| SC-240 | 120 | 2 | 600 | 1.3 | 3.3 | 0.22 | 0.33 | 1.85 |
| SC-246 | 120 | 3.5 | 600 | 2.3 | 3.4 | 0.33 | 0.47 | 1.85 |
| SC-252 | 120 | 5 | 600 | 3.3 | 3.6 | 0.47 | 0.68 | 1.85 |
| SC-238 | 240 | 2 | 300 | 3.6 | 4.0 | 0.068 | 0.082 | 1.85 |
| SC-244 | 240 | 3.5 | 300 | 3.7 | 4.1 | 0.082 | 0.10 | 1.85 |
| SC-250 | 240 | 5 | 300 | 3.8 | 4.2 | 0.15 | 0.22 | 1.85 |
| SC-241 | 240 | 2 | 600 | 1.3 | 3.3 | 0.068 | 0.082 | 1.85 |
| SC-247 | 240 | 3.5 | 600 | 2.3 | 3.4 | 0.082 | 0.10 | 1.85 |
| SC-253 | 240 | 5 | 600 | 3.3 | 3.6 | 0.15 | 0.22 | 1.85 |
|
