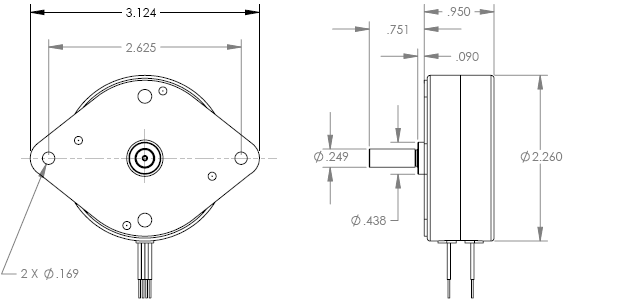

PMAC Synchronous Motor Size 23

Synchronous Motor Standard Features:

• Rigid construction
• Sleeve bearing
• Lead positioning
• 105° C insulation
• Reversible
• Impedance protected
• Increased efficiency
• Instant start/stop

Optional Features:

• Voltages up to 240v
• Ball bearings
• Custom leads and terminations
• Custom shafting
• Custom mounting
• Rear shaft extensions

English Specifications Switch to Metric

Part Number	Rated Voltage	Input Power	60 hz Speed	Start Torque	Stall Torque	Capacitor 60 Hz	Capacitor 50 Hz	Motor O.D.
Part Number	Volts	Watts	RPM	Oz-In	Oz-In	μFd	μFd	Inch
SC-341	24	6	300	6.1	9.1	12.5	15.0	2.26
SC-347	24	8	300	7.4	10.5	17.0	23.0	2.26
SC-353	24	10	300	8.2	11.3	22.0	24.0	2.26
SC-359	24	12	300	8.7	12.0	26.0	32.0	2.26
SC-344	24	6	600	2.5	6.5	12.5	15.0	2.26
SC-350	24	8	600	3.4	7.0	17.0	23.0	2.26
SC-356	24	10	600	5.8	7.5	22.0	24.0	2.26
SC-362	24	12	600	6.6	8.2	26.0	32.0	2.26
SC-342	120	6	300	6.1	9.1	0.47	0.68	2.26
SC-348	120	8	300	7.4	10.5	0.68	1.0	2.26
SC-354	120	10	300	8.2	11.3	0.85	1.0	2.26
SC-360	120	12	300	8.7	12.0	1.0	1.5	2.26
SC-345	120	6	600	2.5	6.5	0.47	0.68	2.26
SC-351	120	8	600	3.4	7.0	0.68	1.0	2.26
SC-357	120	10	600	5.8	7.5	0.85	1.0	2.26
SC-363	120	12	600	6.6	8.2	1.0	1.5	2.26
SC-343	240	6	300	6.1	9.1	0.10	0.15	2.26
SC-349	240	8	300	7.4	10.5	0.18	0.26	2.26
SC-355	240	10	300	8.2	11.3	0.22	0.27	2.26
SC-361	240	12	300	8.7	12.0	0.27	0.38	2.26
SC-346	240	6	600	2.5	6.5	0.10	0.15	2.26
SC-352	240	8	600	3.4	7.0	0.18	0.26	2.26
SC-358	240	10	600	5.8	7.5	0.22	0.27	2.26
SC-364	240	12	600	6.6	8.2	0.27	0.38	2.26
