Reversing Size 19 Deep Permanent Magnet Motor

These permanent magnet gearmotors feature a Hansen size 19 stepper motor with a deep pear-shaped gearbox. Gear ratios range from 1 /2:1 to 1,800:1. Maximum torque output is 100 in-oz (706 mN-m) continuous or 200 in-oz (1412 mN-m) intermittantly. Below are only a few of the many gear ratios available.

Optional Features:


• Voltages up to 240 V
• Custom leads and terminations
• Custom stepper motor outputs
Download CAD file

1-877-246-1931

Print This Page

English Specifications    Switch to Metric

 Deep Gearbox
GeartrainSpeed @ 60 HzContinuous TorqueIntermittant Torque
ratio:1rev/minin-ozin-oz
30206565
6010100130
1006100200
1504100200

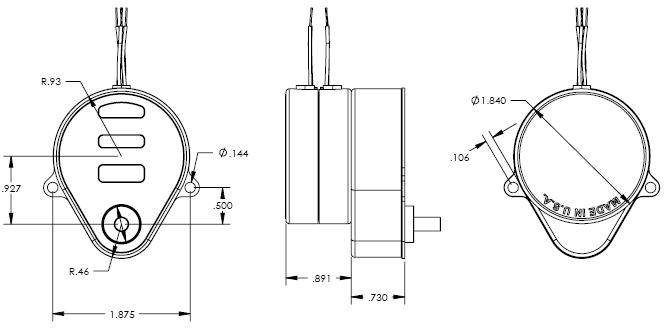

Reversing Size 19 Deep
