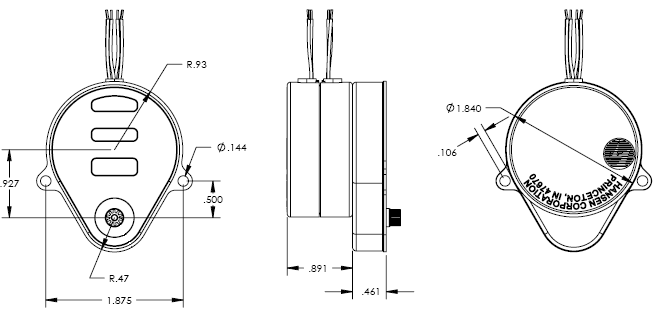

Reversing Size 19 Shallow Permanent Magnet Motor
These permanent magnet gearmotors feature a Hansen size 19 stepper motor with a shallow pear-shaped gearbox. Gear ratios range from 5:3 to 72,000:1. Maximum torque output is 24 in-oz (169 mN-m) continuous or 48 in-oz (339 mN-m) intermittantly. Below are only a few examples of the many gear ratios available.
|
Optional Features:
• Voltages up to 240 V
• Custom leads and terminations
• Custom stepper motor outputs
|
|
English Specifications Switch to Metric
| | Shallow Gearbox |
| Geartrain | Speed @ 60 Hz | Continuous Torque | Intermittant Torque |
| ratio:1 | rev/min | in-oz | in-oz |
| 30 | 20 | 24 | 48 |
| 60 | 10 | 22 | 44 |
| 100 | 6 | 22 | 44 |
| 150 | 4 | 24 | 48 |
|
