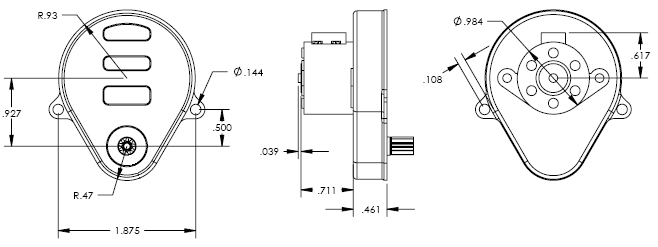

Reversing Size 25 Shallow Permanent Magnet Motor

These gearmotors feature an NMB size 25 stepper motor with a shallow pear-shaped gearbox. Gear ratios range from 5:3 to 72,000:1. Maximum torque output is 50 in-oz (353 mN-m) continuous or 100 in-oz (706 mN-m) intermittantly. Below are only a few of the many gear ratios available.

Optional Features:

• Voltages up to 24 V
• Custom leads and terminations
• Custom stepper motor outputs

English Specifications Switch to Metric

Geartrain	Speed @ 60 Hz		Continuous Torque	Intermittant Torque
ratio:1	rev/min	rev/hr	in-oz	in-oz
60	10		8	17
100	6		14	28
150	4		21	42
300	2		25	50
600	1		25	50
600HD	1		50	100
1,200		30	25	50
1,200HD		30	50	100
3,600		10	25	50
36,000		1	25	50
