Chart Drive - Round Mount

Typical Applications

  • Chart Recorders

For this timing product we combine a Synchron instrument motor and an external gear train. You can choose motor speeds ranging from one revolution per week to 1 rpm or faster. And you can get these gear train reductions - 6:1, 12:1, 96:1, 168:1. An anti-backlash device on the final reduction gear limits output shaft backlash to 1/2 degree or less in most applications.

Additional Product Details

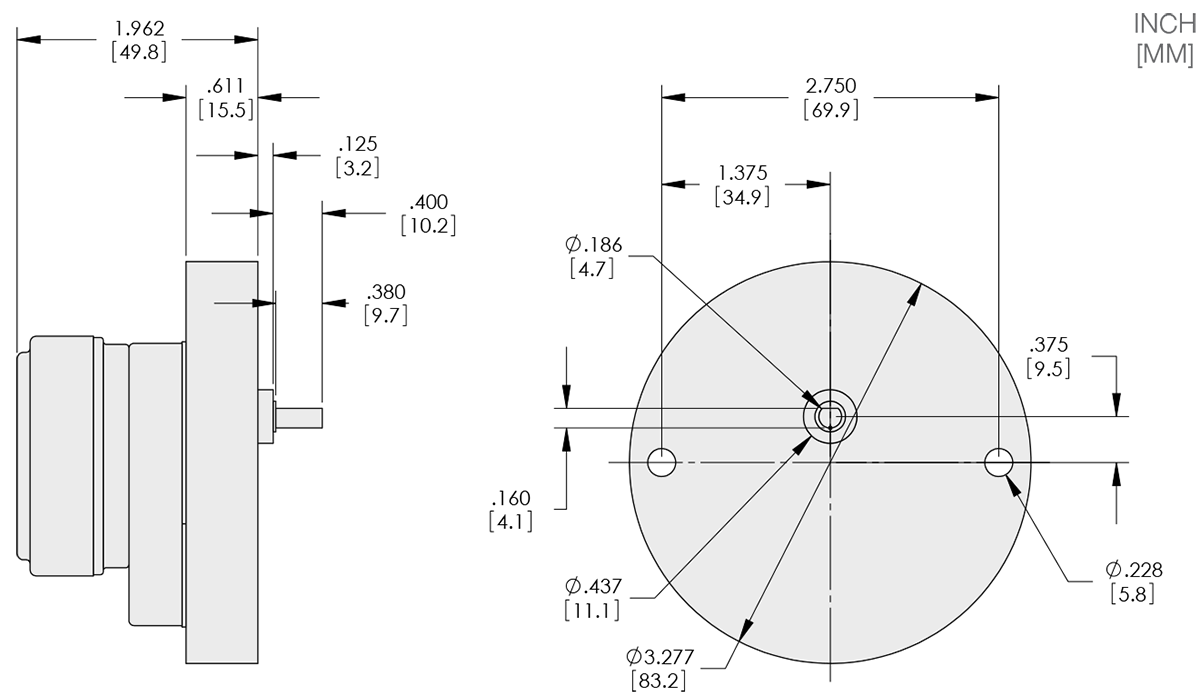

Chart Drive - Round Mount Outline Drawing

Chart Drive - Round Mount Technical Drawings

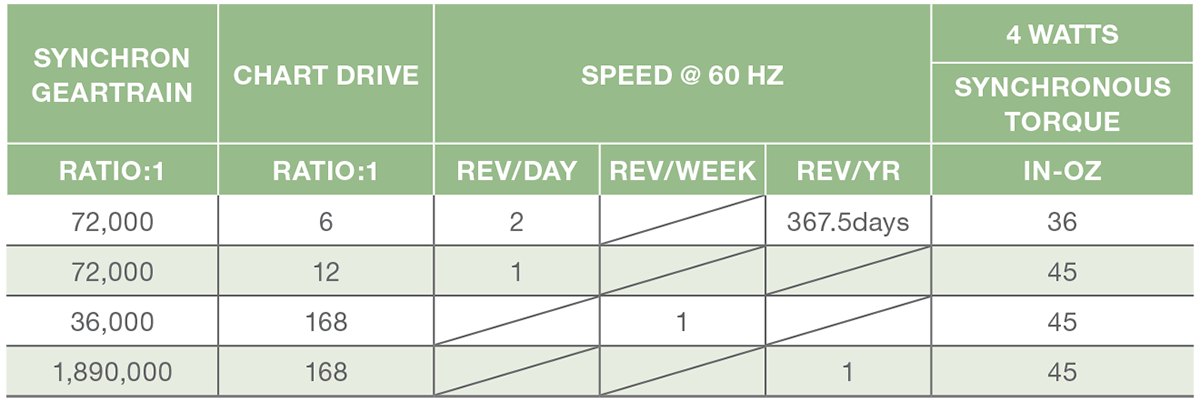

Chart Drive - Round Mount Performance

Chart Drive - Round Mount Performance

Chart Drive - Round Mount CAD

Login Required to Access!

For access to our CAD, please submit your name and email address

Chart Drive - Round Mount Data Sheet

View Data Sheet
