Chart Drive - Square Mount

Typical Applications

  • Chart Recorders

For this timing product we combine a Synchron instrument motor and an external gear train. You can choose motor speeds ranging from one revolution per week to 1 rpm or faster. These gear train reductions are offered, 6:1, 12:1, 96:1, 168:1. An anti-backlash device on the final reduction gear limits output shaft backlash to 1/2 degree or less in most applications.

Additional Product Details

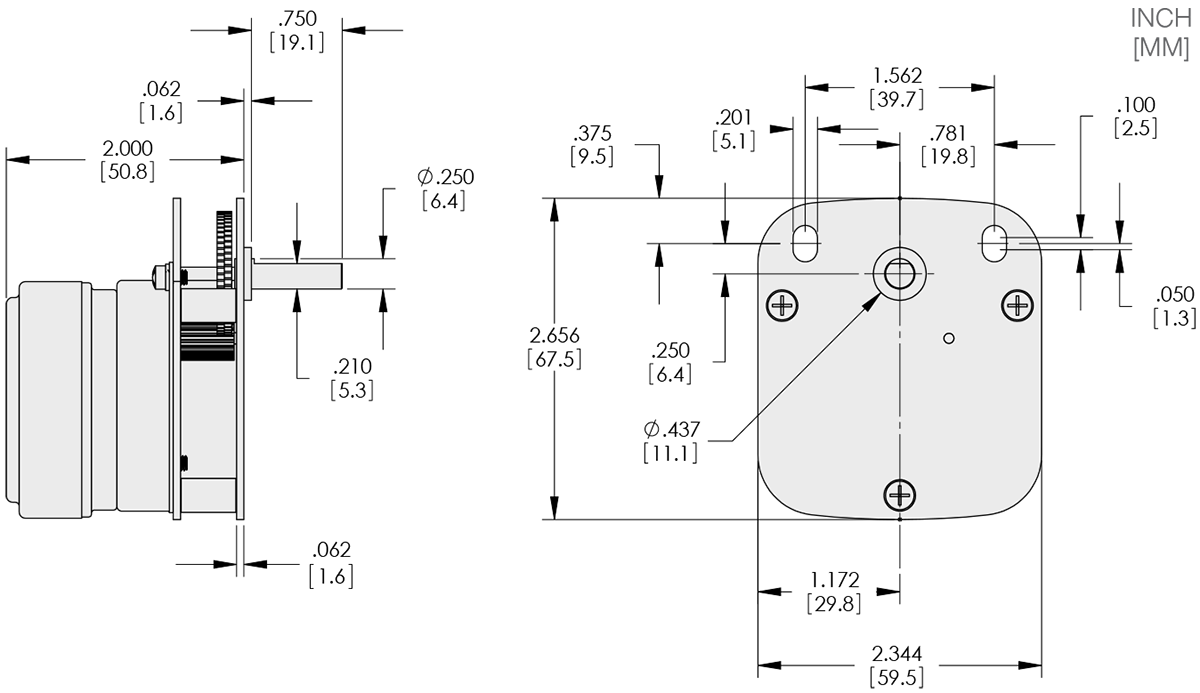

Chart Drive - Square Mount Outline Drawing

Chart Drive - Square Mount Technical Drawings

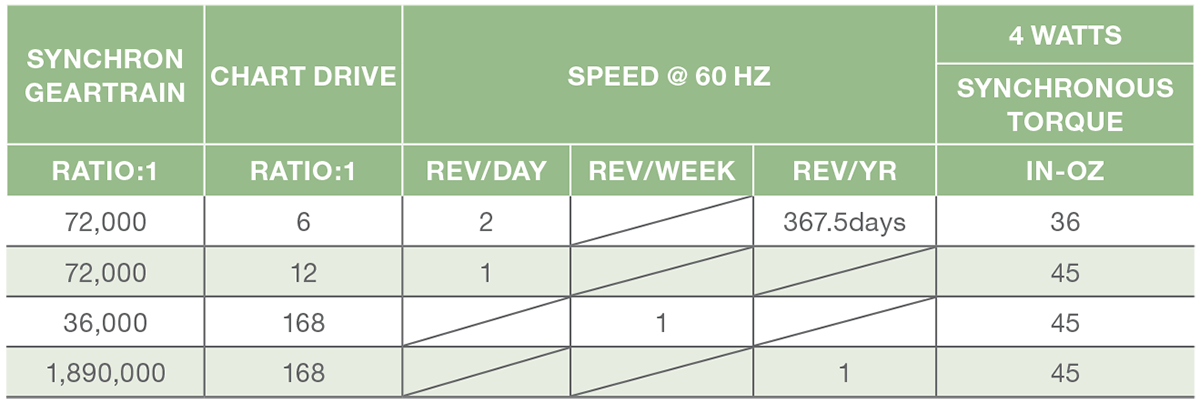

Chart Drive - Square Mount Performance

Chart Drive - Square Mount Performance

Chart Drive - Square Mount CAD
