Series 135-7 - Actuator
POPC (Power Open/Power Close)

Typical Applications

  • HVAC Dampers
  • Material Dispensing

Hansen's Power Open / Power Close actuator functions with a PMAC motor which uses power to open and close the damper. With no spring to overcome it is the preferred option for high load applications or when low power consumption is required. The PO/PC actuator has a simple three wire reversing electrical hook-up. The infinitely adjustable set screw mounting allows you to set your close position for as little or as much residual air flow as you desire.

Additional Product Details

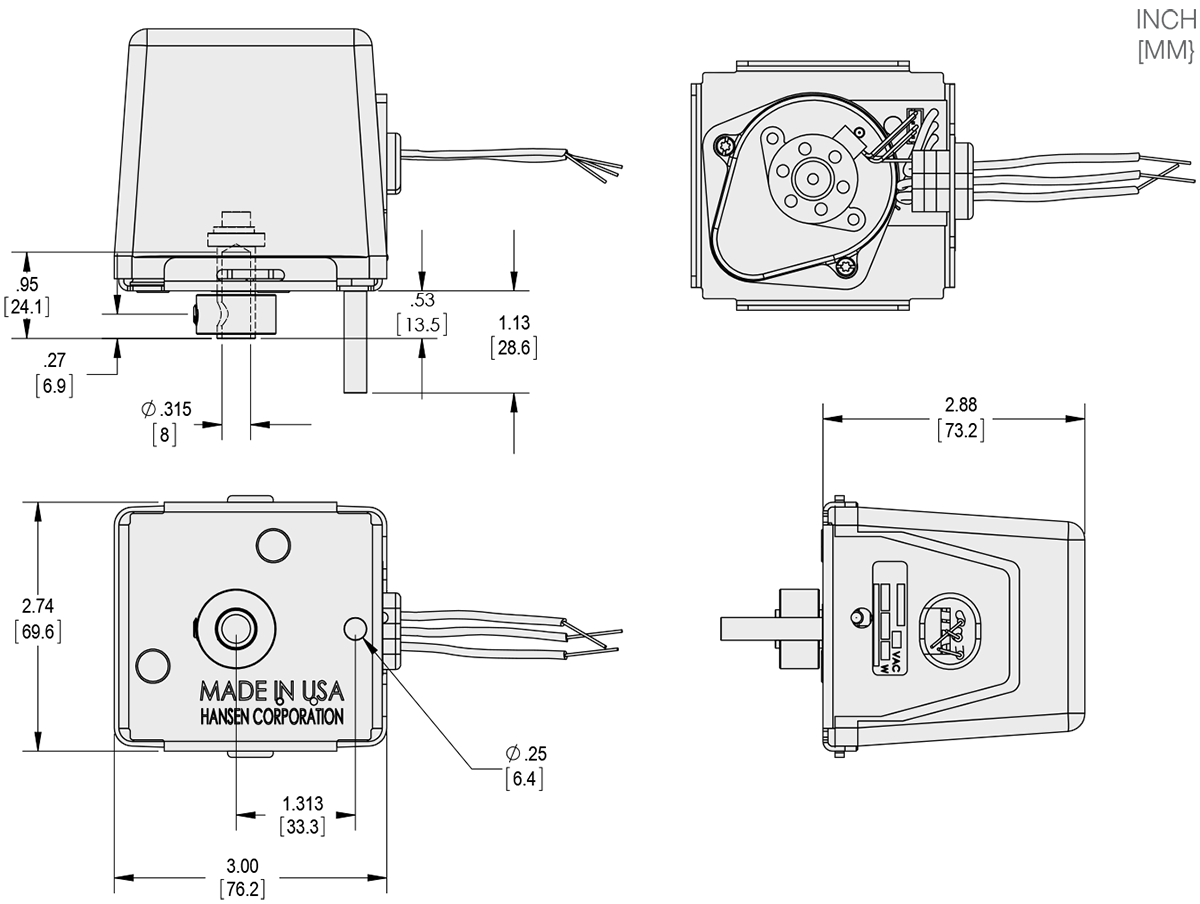

Series 135-7 - POPC (Power Open/Power Close) Actuator Outline Drawing

Series 135-7 - POPC (Power Open/Power Close) Actuator Technical Drawings

Series 135-7 - POPC (Power Open/Power Close) Actuator Performance

Series 135-7 - POPC (Power Open/Power Close) Actuator Performance

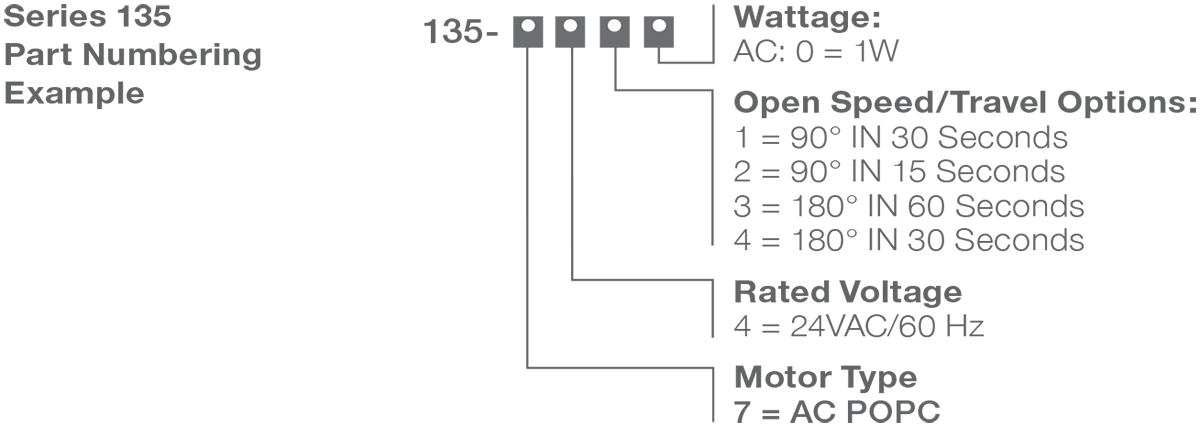

Series 135-7 - POPC (Power Open/Power Close) Actuator Numbering Example

Series 135-7 - POPC (Power Open/Power Close) Actuator Numbering Example

Series 135-7 - POPC (Power Open/Power Close) Actuator CAD

Login Required to Access!

For access to our CAD, please submit your name and email address

Series 135-7 - POPC (Power Open/Power Close) Actuator Data Sheet

View Data Sheet
