Series 125-2, 3, 6 - Size 25 Step Gear Motor

Typical Applications

  • Medical Devices
  • Instrument Control
  • HVAC Control
  • ATM Machine
  • Robotic Controls
  • Lighting Controls
  • Voting Machine
  • SunTracker
  • Beverage Dispensing
  • Video Games/Gaming Machine
  • POP Displays

These gear motors match a 25mm step motor to our pear shaped gear box. Gear ratios range from 5.3:1 to 72,000:1. Maximum torque output is 40 oz-in continuous or 80 oz-in intermittent. Voltages up to 24 volts are available along with normal wide selection of output shafts.

Additional Product Details

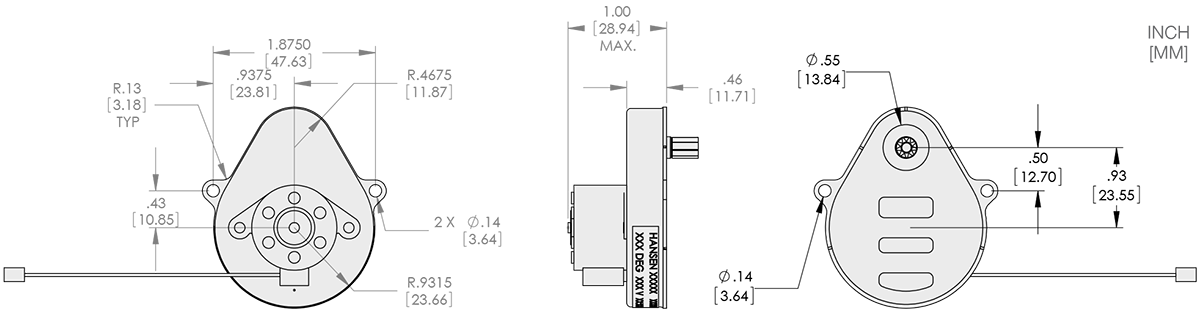

Series 125-2, 3, 6 - Size 25 Step Gear Motor Outline Drawing

Series 125-2, 3, 6 - Size 25 Step Gear Motor Technical Drawings

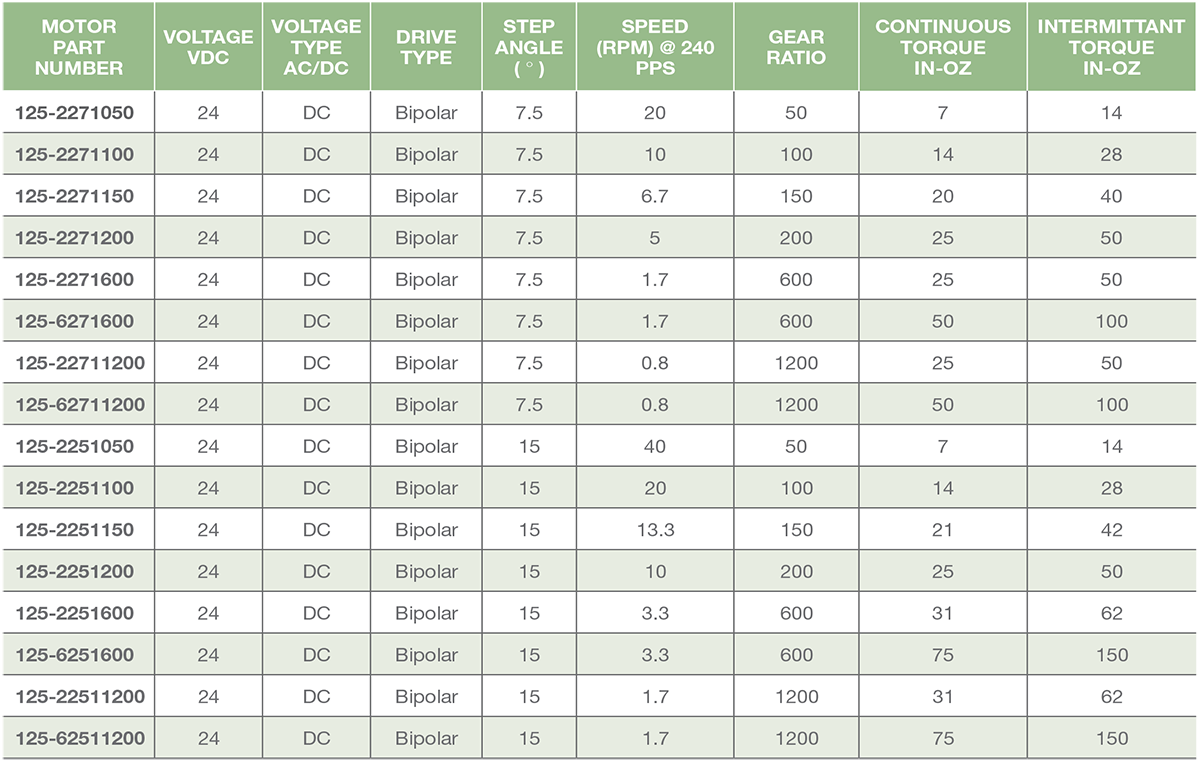

Series 125-2, 3, 6 - Size 25 Step Gear Motor DC Options

Series 125-2, 3, 6 - Size 25 Step Gear Motor DC Options

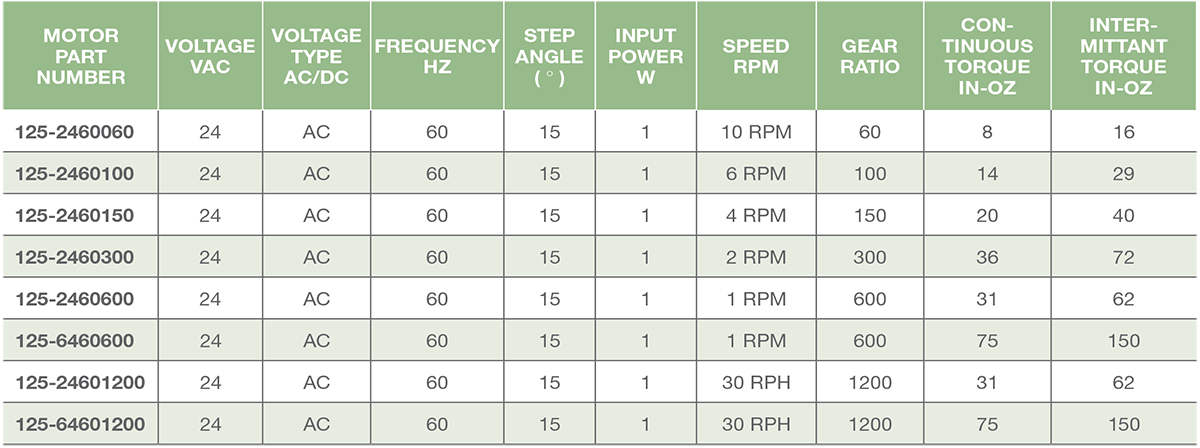

Series 125-2, 3, 6 - Size 25 Step Gear Motor AC Options

Series 125-2, 3, 6 - Size 25 Step Gear Motor AC Options

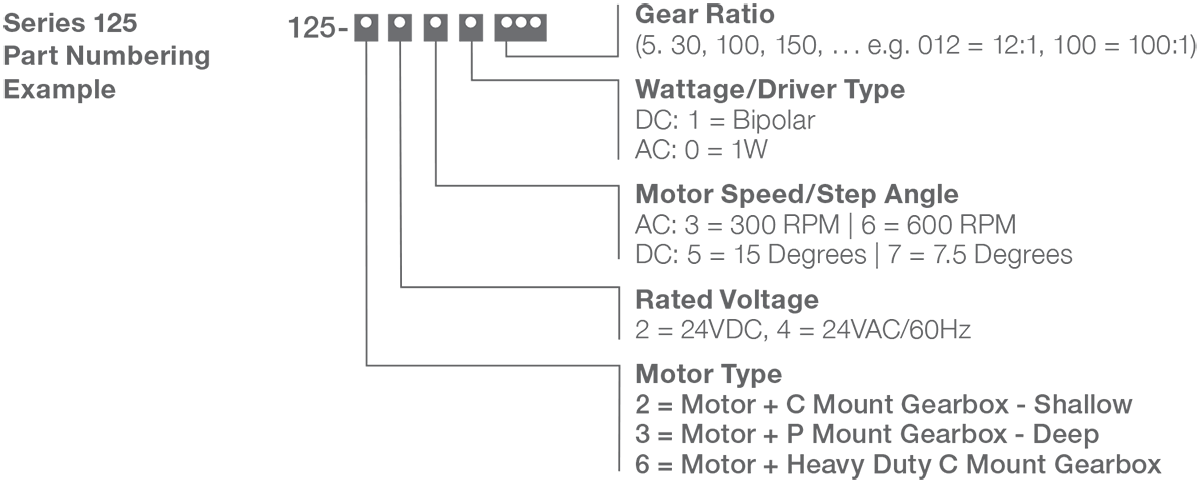

Series 125-2, 3, 6 - Size 25 Step Gear Motor Numbering Example

Series 125-2, 3, 6 - Size 25 Step Gear Motor Numbering Example

Series 125-2, 3, 6 - Size 25 Step Gear Motor CAD

Login Required to Access!

For access to our CAD, please submit your name and email address

Series 125-2, 3, 6 - Size 25 Step Gear Motor Data Sheet

View Data Sheet
