Series 111-2 - 1.1" 30mm PMDC Brush Motor

Typical Applications

  • Printers
  • Plotters
  • Pumps
  • Fans
  • Cutting Tools
  • Medical Devices
  • Robotics
  • Beverage Dispensing
  • Gaming/Recreational Machines

The series 111-2 permanent magnet, 30mm diameter DC brush motor has been introduced to serve the industrial, instrumentation and automotive markets in either open-loop or close-loop applications.

Standard catalog stall torque ratings range up to 19 oz-in while no-load speed ranges from 3,200 to 6,200 rpm. Encoders with line counts up to 2048 are available to provide velocity and position feedback information. Reliability is further enhanced by long life, pre-loaded ball bearings. Special windings, shaft and mounting configurations are available to meet the requirements of OEM custom applications.

Additional Product Details

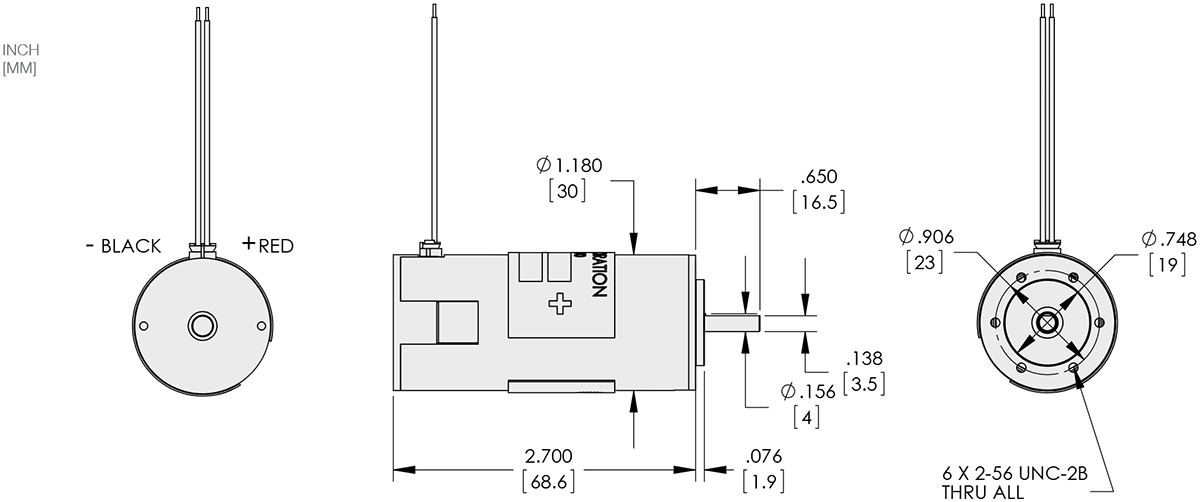

Series 111-2 - 1.1" 30mm PMDC Brush Motor Outline Drawing

Series 111-2 - 1.1 inch 30mm PMDC Brush Motor Technical Drawings

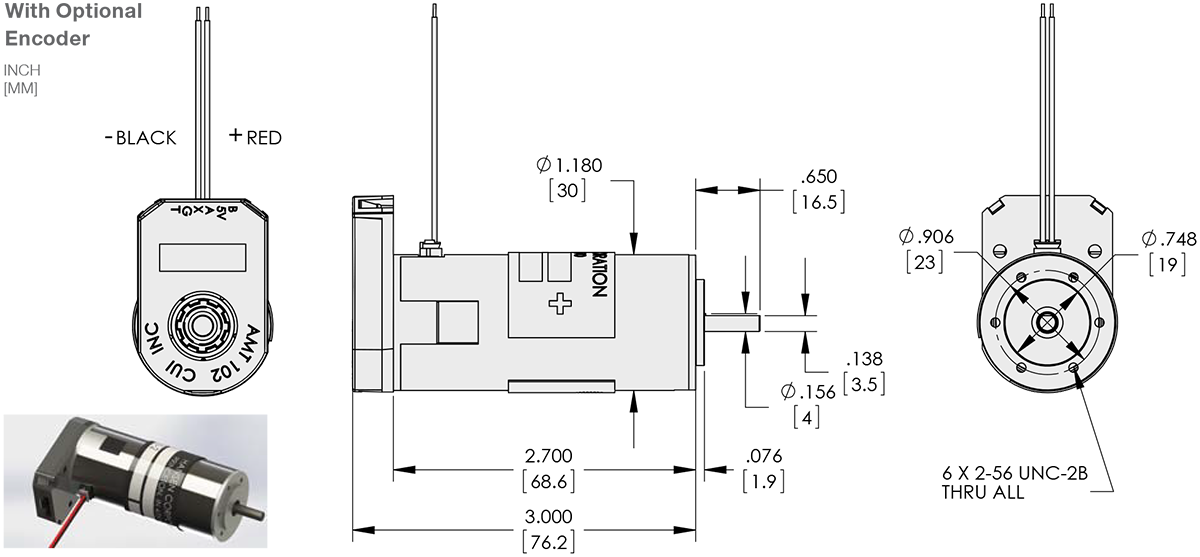

Series 111-2 - 1.1" 30mm PMDC Brush Motor Standard Options

Series 111-2 - 1.1 inch 30mm PMDC Brush Motor Standard Options

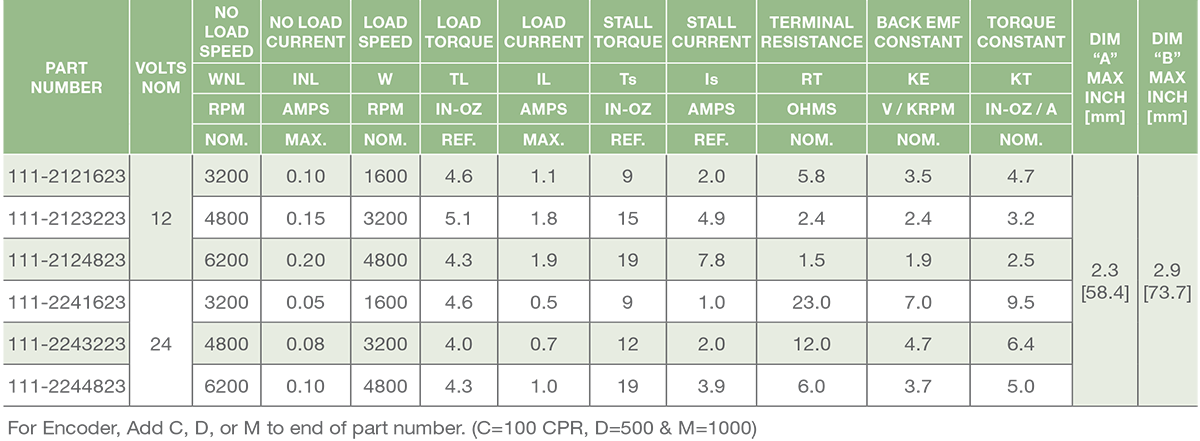

Series 111-2 - 1.1" 30mm PMDC Brush Motor Performance

Series 111-2 - 1.1 inch 30mm PMDC Brush Motor Performance

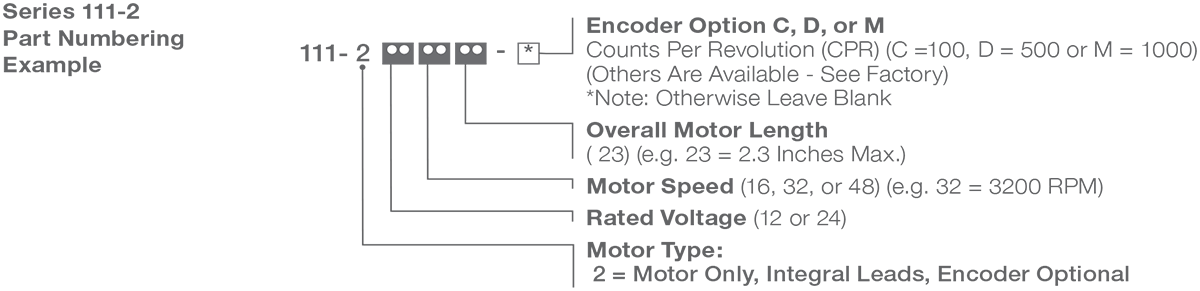

Series 111-2 - 1.1" 30mm PMDC Brush Motor Numbering Example

Series 111-2 - 1.1 inch 30mm PMDC Brush Motor Numbering Example

Series 111-2 - 1.1" 30mm PMDC Brush Motor CAD

Login Required to Access!

For access to our CAD, please submit your name and email address

Series 111-2 - 1.1" 30mm PMDC Brush Motor Data Sheet

View Data Sheet
