Series 121-1 - 2.1" DC Motor

Typical Applications

  • Printers
  • Plotters
  • Pumps
  • Fans
  • Cutting Tools
  • Medical Devices
  • Robotics
  • Beverage Dispensing
  • Gaming/Recreational Machines

The series 121-1 (2.1" diameter) permanent magnet DC motor is available to serve the industrial, instrumentation and automotive markets in either open-loop or close-loop applications. Rotor laminations are skewed to provide low cogging torque and no preferred rotor position. Standard catalog stall torque ratings are in the range of 60 to 180 oz-in, while no-load speed ranges from 2,100 to 8,000 rpm max. Encoders with line counts up to 2048 are available. Reliability is enhanced by long life, pre-loaded ball bearings. Special windings, shaft and mounting configurations are available to meet the requirements of OEM custom applications.

Additional Product Details

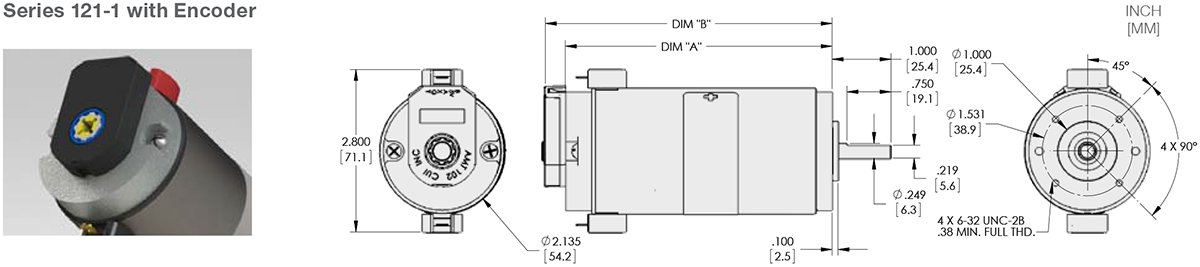

Series 121-1 - 2.1" DC Motor Outline Drawing

Series 121-1 - 2.1 inch DC Motor Technical Drawings

Series 121-1 - 2.1" DC Motor Standard Options

Series 121-1 - 2.1 inch DC Motor Standard Options

Series 121-1 - 2.1" DC Motor Performance

Series 121-1 - 2.1 inch DC Motor Performance

Series 121-1 - 2.1" DC Motor Numbering Example

Series 121-1 - 2.1 inch DC Motor Numbering Example

Series 121-1 - 2.1" DC Motor CAD

Login Required to Access!

For access to our CAD, please submit your name and email address

Series 121-1 - 2.1" DC Motor Data Sheet

View Data Sheet
