Series 148-4 - DC Gear Motor
(Heavy Duty Gearing)

Typical Applications

  • Cutting Tools
  • Medical Devices
  • POP Displays
  • Rotating Lighting
  • Robotics
  • Beverage Dispensing
  • Gaming/Recreational Machines

The Synchron model 148-4 is a permanent magnet DC motor mounted on a heavy duty pear shaped spur gearbox. 9 gear ratios are available from 10:1 to 896:1. The highly efficient DC motor has permanently lubricated sintered bearings and long life brushes. Various customized features are available to OEM customers, such as special output shaft configurations, mounted pulleys or sprockets, terminal wiring and wire termination connectors.

Additional Product Details

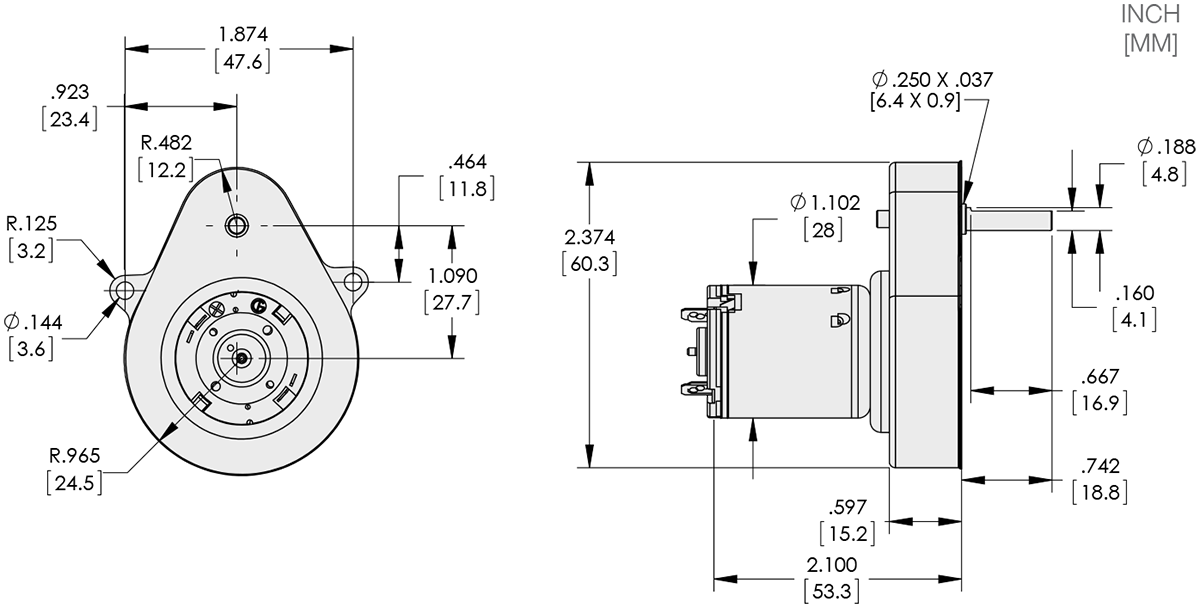

Series 148-4 - DC Gear Motor (Heavy Duty Gearing) Outline Drawing

Series 148-4 - DC Gear Motor (Heavy Duty Gearing) Technical Drawings

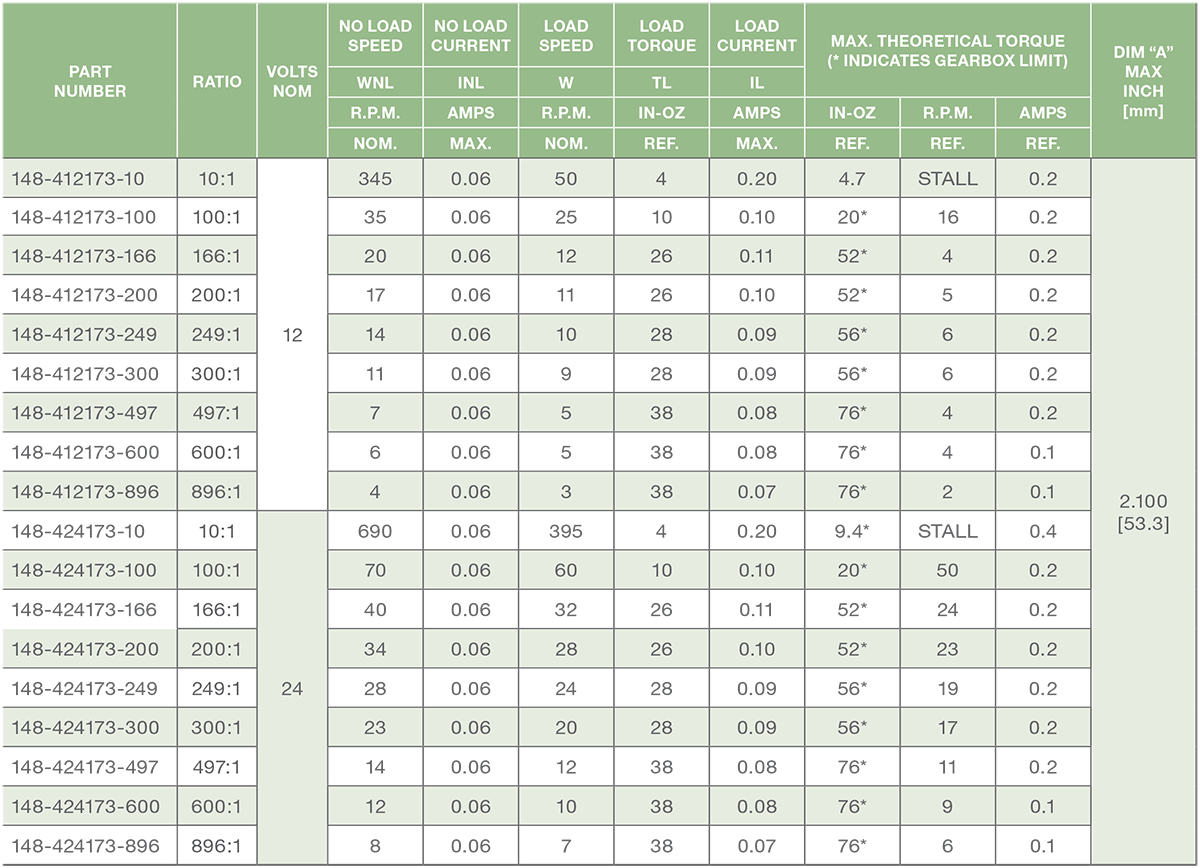

Series 148-4 - DC Gear Motor (Heavy Duty Gearing) Performance

Series 148-4 - DC Gear Motor (Heavy Duty Gearing) Performance

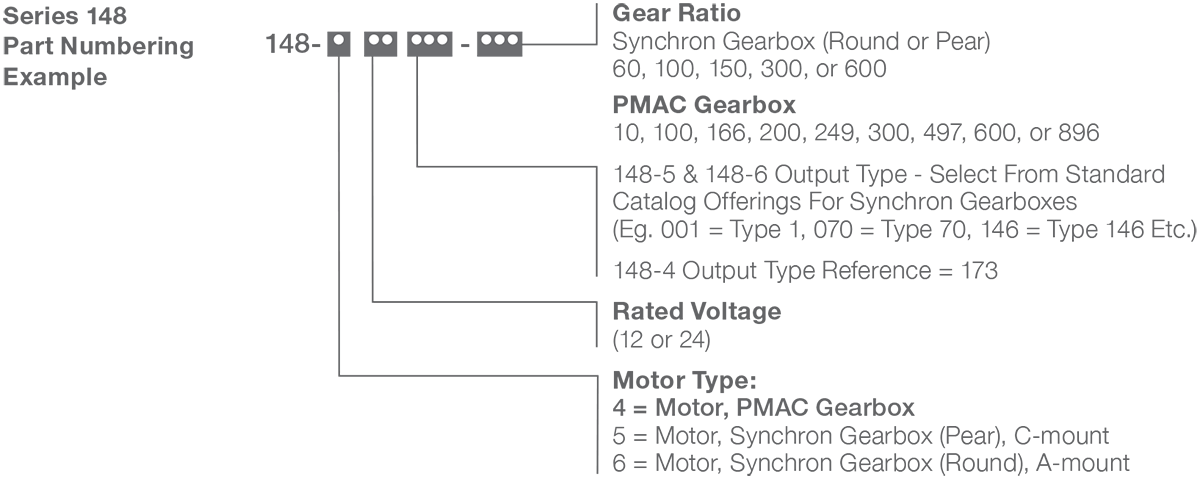

Series 148-4 - DC Gear Motor (Heavy Duty Gearing) Numbering Example

Series 148-4 - DC Gear Motor (Heavy Duty Gearing) Numbering Example

Series 148-4 - DC Gear Motor (Heavy Duty Gearing) CAD

Login Required to Access!

For access to our CAD, please submit your name and email address

Series 148-4 - DC Gear Motor (Heavy Duty Gearing) Data Sheet

View Data Sheet
